About this Project

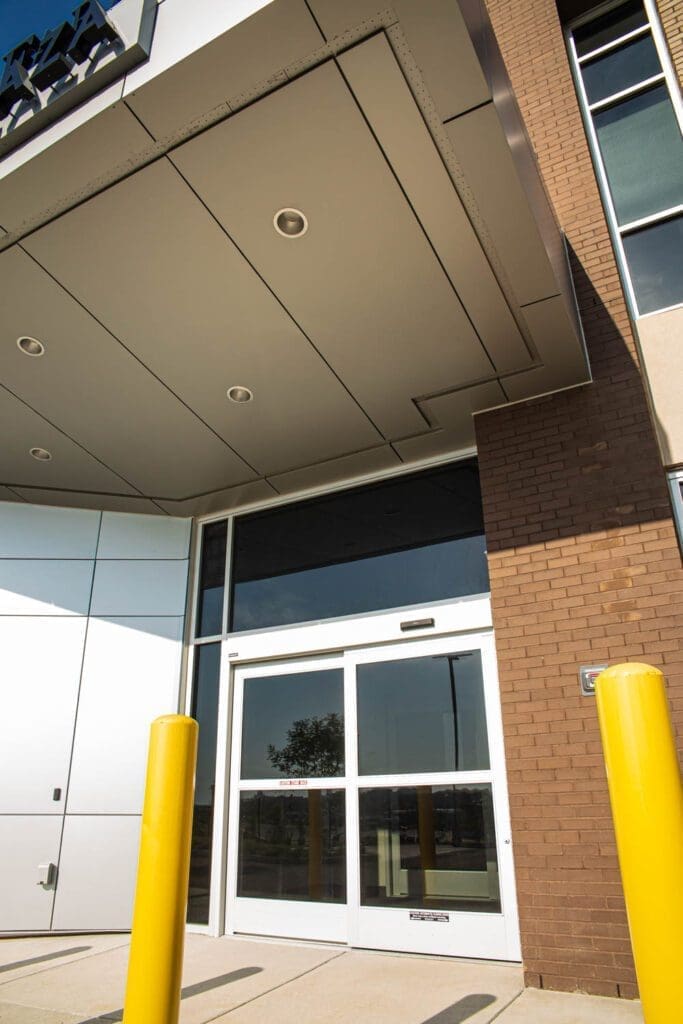

CI provided, fabricated, and installed all glass and panels, including installation of 2 Horton 2003 Series Single Slide Automatic Doors. This included an overhead concealed door package, 1-3/4” x 4-1/2” framing, door configuration: O-SX, wide stile doors, 10” bottom rails, and activation and safety with overhead mounted sensors. Additionally, we provided micro-processor controls, with a jamb mounted mode selector switch, fully weather-stripped with seals and sweeps, stops for ¼” or 1” glass, mortise cylinders and thumb turn cylinders.

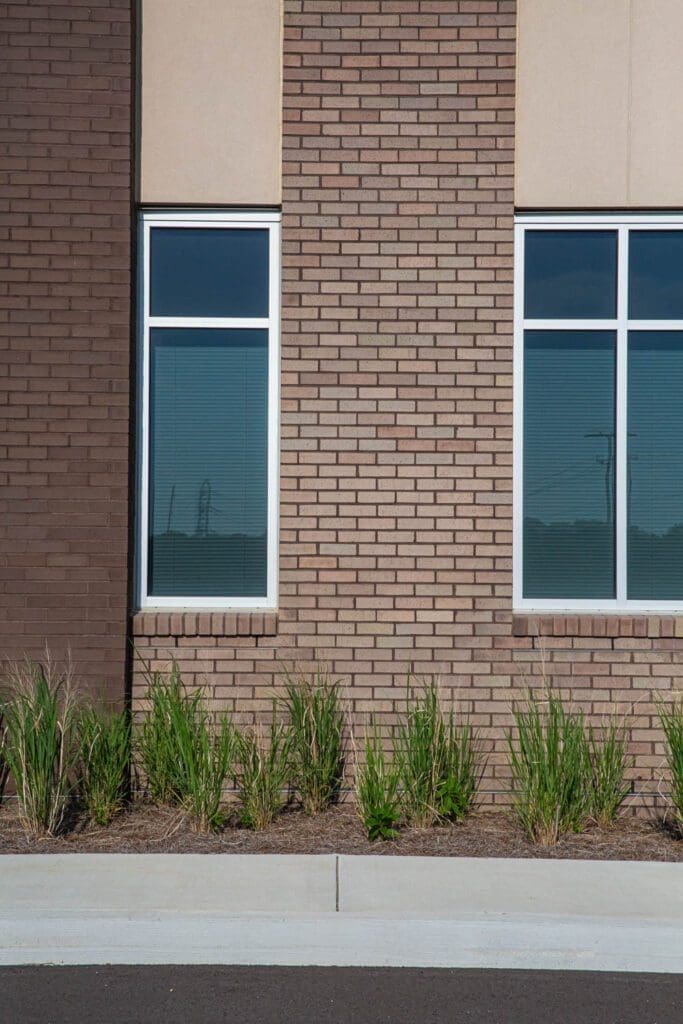

Additionally, this was installed and tuned according to ANSI 156.10 by AAADM trained technicians. Additionally, CI provided installation of approximately 4,374 square feet of Tubelite T14000, 2” x 4-1/2” aluminum storefront framing, thermally broken, center set glazing. We used— 1” grey Guardian SN68 (#2) low-e insulated glass, 1” grey Guardian SN68 (#2) with Opacicoat (#4) low-e insulated spandrel glass, primarily, and ¼” clear tempered glass on select openings.

General Contractor

JE Dunn

Commercial Installation, LLC
