About this Project

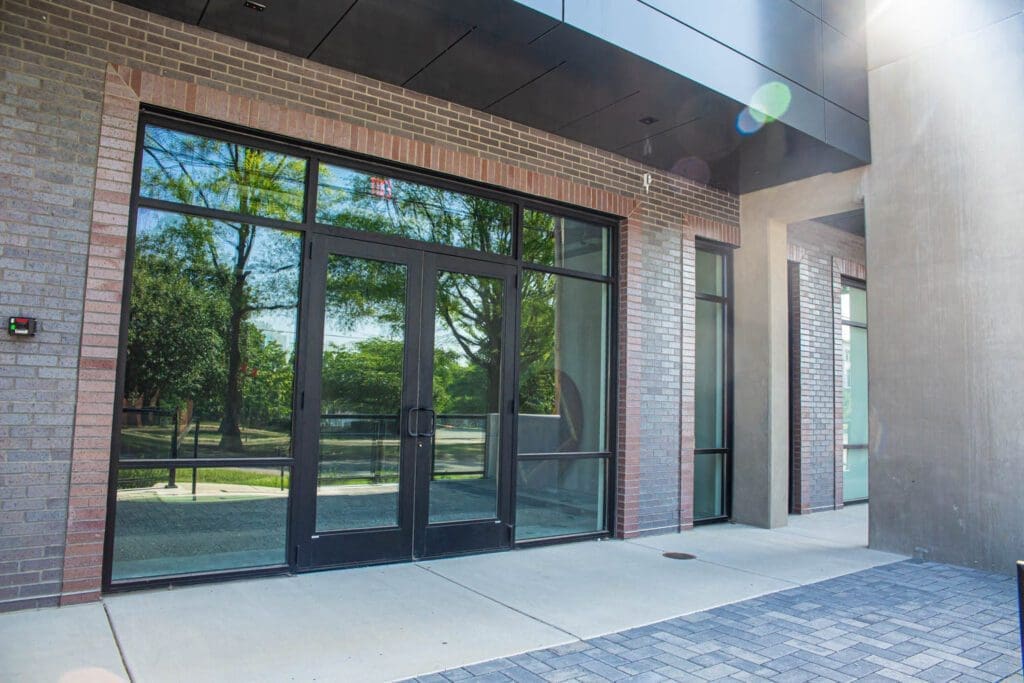

For the interior, CI provided installation of approximately 643 square feet of Tubelite E4500, 1-3/4” x 4-1/2” aluminum framing, non-thermal, center set glazing. We used paired medium stile aluminum doors with 10” bottom rails and specified hardware. For the exterior, CI provided installation of approximately 1,052 square feet of Tubelite T14000, 2” x 4” aluminum framing, thermally broken, center set glazing. Four (4) pairs of medium stile aluminum doors with 10” bottom rails and specified hardware.
Aluminum finishes were class I black anodized. Additionally, we provided, fabricated, and installed approximately 5,700 square feet of Tubelite CW400, 2-1/2” x 7-1/2” aluminum curtain wall framing with associated aluminum storefront, glass, and hardware. There was approximately 115 linear feet of C.R. Laurence, Series 100, 42” glazed aluminum handrail, with 1” clear Solarban 60 (#2) insulated glass. We used ¼” clear tempered glass at interior aluminum frames and doors, and 3/8” clear laminated tempered glass at aluminum handrails.
